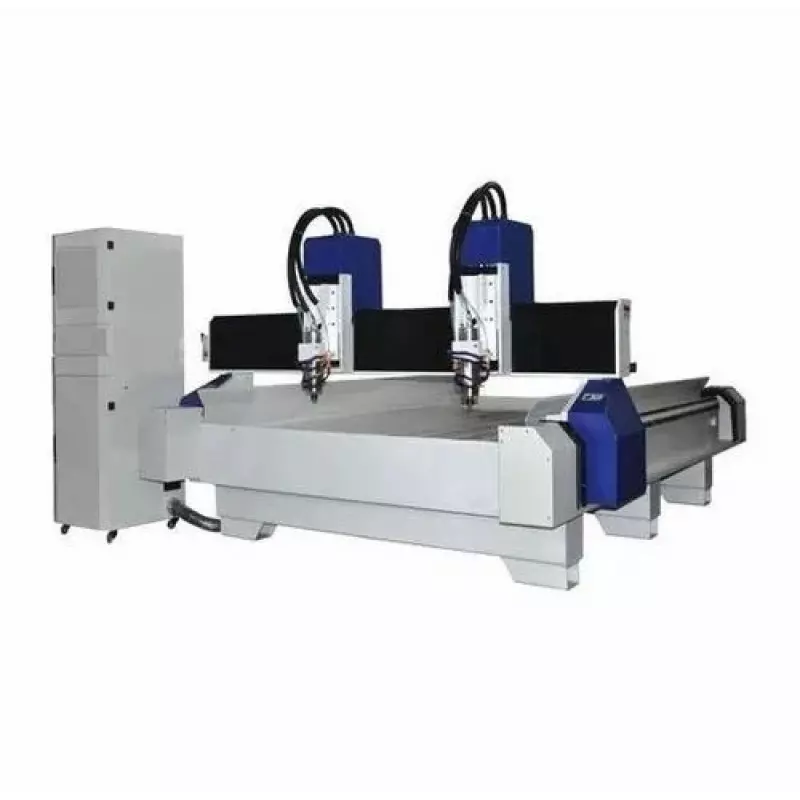

Automatic CNC Stone Engraving Machine Manufacturers In Lucknow

1. Machine Preparation

• Before pressing any buttons, set the stage.
• Place the machine on a level surface
• Check power supply, grounding, and emergency stop
• Inspect spindle, rails, belts, and lubrication
• Clean dust or stone residue from previous work
• Safety first. Stone dust is sneaky and unforgiving.

2. Material Setup

• Stone must be calm, steady, and unmoving.
• Choose suitable stone (marble, granite, slate, etc.)
• Fix the stone firmly using clamps or vacuum table
• Ensure the surface is flat and aligned with machine axes
• Any movement here means ruined engraving later.

3. Tool Selection & Installation

• The engraving bit is your pen.
• Select correct tool (diamond bit, V-bit, flat end mill)
• Install tool securely in the spindle
• Check tool length and condition
• A worn bit tells ugly stories.

4. Machine Homing & Zero Setting

• Teach the machine where it exists.
• Power ON the machine
• Perform homing (X, Y, Z reference)
• Set work zero point (usually top-left or center of stone)
• Set Z-axis zero carefully on stone surface
• This is the machine’s sense of direction.

5. Design & Program Setup

The brain of the operation.

1. Create or import design using CAD software (ArtCAM, Aspire, AutoCAD, etc.)
2. Convert design to toolpath
3. Set parameters:
4. Engraving depth
5. Spindle speed
6. Feed rate
7. Tool diameter
8. Export G-code compatible with the CNC controller
9. Garbage design in = garbage carving out.

6. Program Loading

• Give the robot its script.
• Transfer G-code via USB, LAN, or controller memory
• Load program on CNC control panel
• Preview toolpath if available
• Always preview. Stone forgives nothing.

7. Dry Run (Recommended)

• A rehearsal without touching stone.
• Run the program with spindle OFF
• Watch tool movement carefully
• Check boundaries and depth simulation
• This step saves money and heartbreak.

8. Start Engraving Operation

• Now the magic begins.
• Turn ON dust extraction or water cooling
• Start spindle
• Press Cycle Start
• Monitor engraving continuously
• Never leave the machine unattended.

9. Finishing & Inspection

• After the machine falls silent.
• Stop spindle and power OFF
• Remove stone carefully
• Clean engraved surface
• Inspect depth, clarity, and alignment
• Small touch-ups can be done manually if needed.

10. Maintenance After Work

• Respect the machine, and it will respect you.
• Clean machine and rails
• Check tool wear
• Lubricate moving parts
• Backup programs
• A cared-for CNC lasts years.
