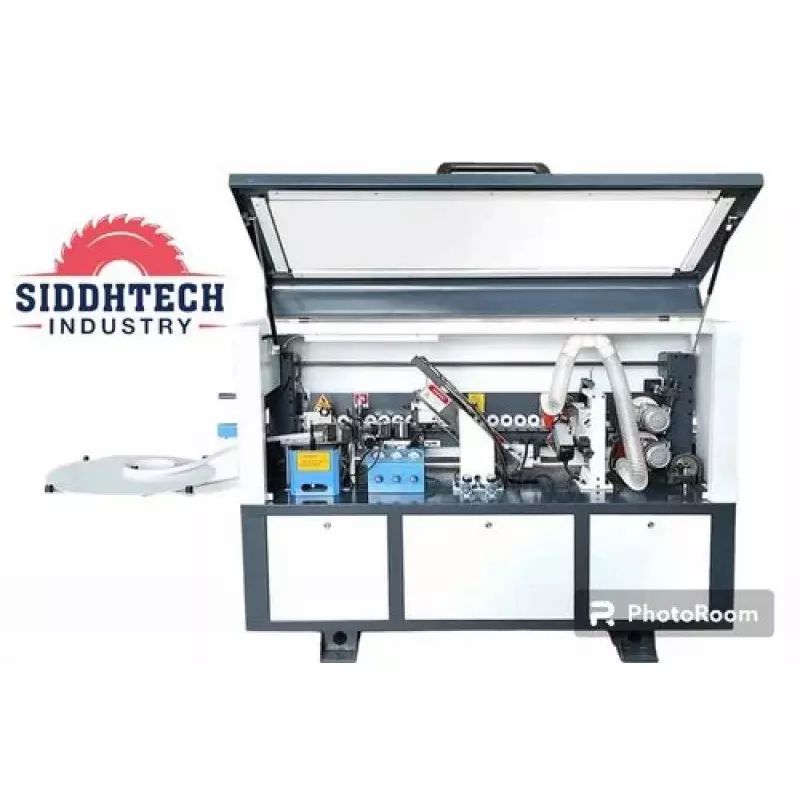

Automatic Edge Bander In Delhi, India
Details of Automatic Edge Bander
We Are Supply Automatic Edge Bander Machine.Specifications following:
v Gluing--- Edge cut---End Trimming---Fine Trimming----Scraping---Buffing
(With PLC +Touch screen DELTA)
v Delta HMI
v Thickness of the wood: 10-45mm Edge band thickness: 0.4-3mm
v Min width of the wood:≥80mm
v Min length of the wood:≥160mm
v Feeding speed: 13mm/min
v Air pressure: 0.6Mpa
v Power : 380V/50Hz3Phase
v Total Power :8KW
v The glue temperature: 180-200degree
Offered Product
Automatic Edge Bander
Voltage415Model Name/NumberSTEB-450 6 FuctionAutomation GradeAGradeAJob MaterialWoodMaterialWoodMotor Power18KWPackaging TypePVC LamitionAir Consumption0.6 MPABrandSiddhtech IndustryWorkpiece Thickness10-60 MmEdges Thickness0.4-3 MmBanding Thickness0.4-3 MmBanding Width80 / 120 MmOverall Dimension6800 X 1100 X 1600 MmColorBlue Nd WhatiPower Supply8KWGlue T... Read moreAutomatic Edge Bander In Vadodara ,Gujarat India
We Are Supply Automatic Edge Bander Machine.Specifications Following:V Gluing--- Edge Cut---End Trimming---Fine Trimming----Scraping---Buffing(With PLC +Touch Screen DELTA)V Delta HMIV Thickness Of The Wood: 10-45mm Edge Band Thickness: 0.4-3mmV Min Width Of The Wood:≥80mmV Min Length Of The Wood:≥160mmV Feeding Speed: 13mm/minV Air Pressure: 0.6MpaV Power : 380V/50Hz3PhaseV Total Power :8KWV The Glue Temperature: 180-200degree Continue
Automatic Edge Bander Mumbai Maharashtra
We Are Supply Automatic Edge Bander Machine.Specifications Following:V Gluing--- Edge Cut---End Trimming---Fine Trimming----Scraping---Buffing(With PLC +Touch Screen DELTA)V Delta HMIV Thickness Of The Wood: 10-45mm Edge Band Thickness: 0.4-3mmV Min Width Of The Wood:≥80mmV Min Length Of The Wood:≥160mmV Feeding Speed: 13mm/minV Air Pressure: 0.6MpaV Power : 380V/50Hz3PhaseV Total Power :8KWV The Glue Temperature: 180-200degree Continue
Automatic Edge Bander With Corner Rounding Ahmedabad, Gujarat
Precision Finish For High-Speed Panel ProductionWith Advanced Automation And Built-in Finishing Stations, The Automatic Edge Banding Machine Is Engineered For Continuous Furniture Production Where Speed, Accuracy, And Edge Quality Are Essential. From Feeding And Gluing To Trimming And Buffing, Every Step Is Synchronized For Flawless Results.High-Speed Performance With Clean DetailingLeveraging In-line Stations And Motorized Controls, This Equipment Handles PVC, ABS, Veneer, And Melami Continue
