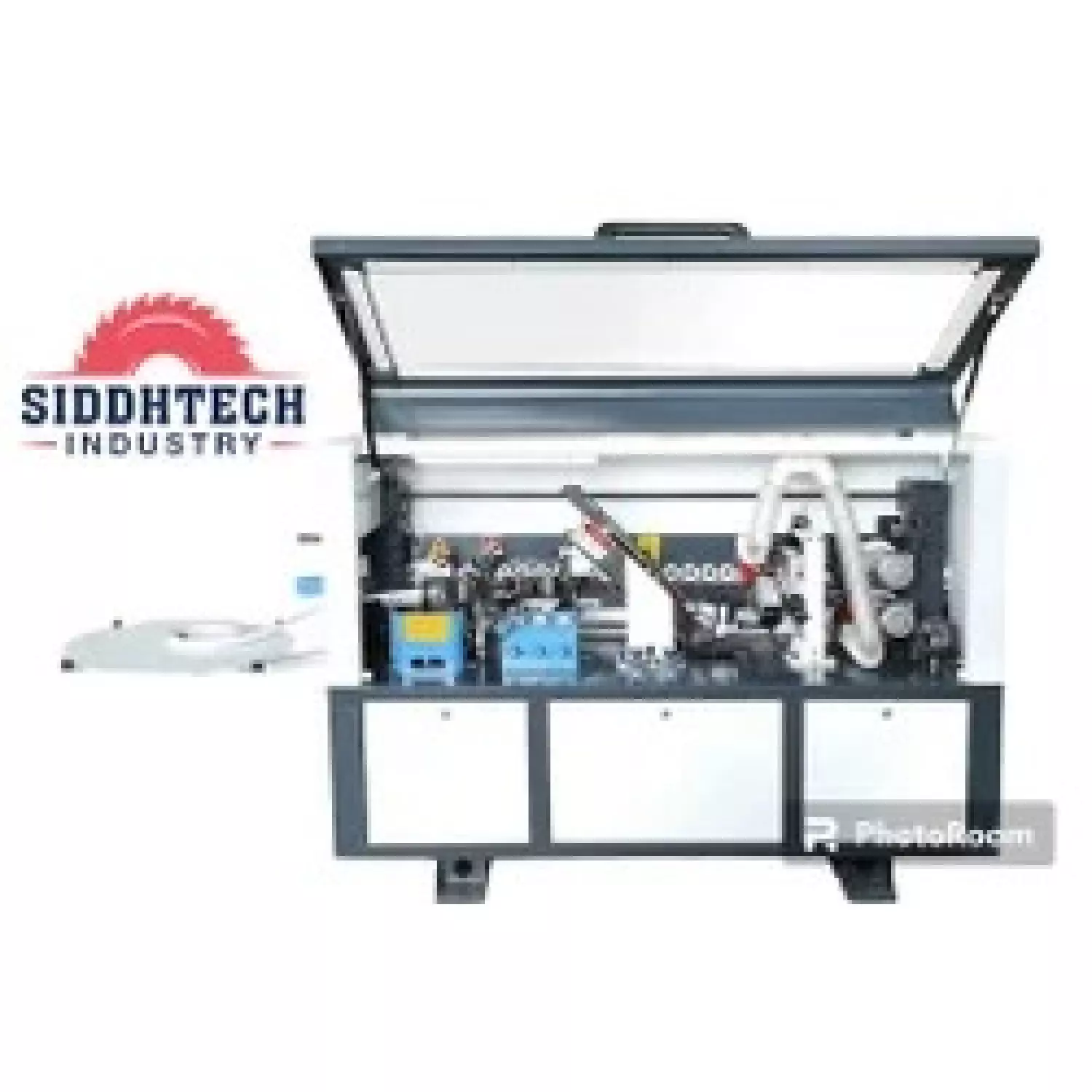

Automatic Edge Banding Machine Manufacture In Nashik
Details of Automatic Edge Banding Machine
Offering Smart Bander with Smart Features
The automatic edge banding machine is designed for high-speed panel finishing operations. This machine provides edge banding, gluing, trimming, and polishing for MDF, HDF, and particle boards. Its robust construction ensures long-term durability in mass production units. The machine is prepared using sectional assembly, starting with frame alignment, motor installation, glue pot adjustment, and sensor calibration. Each process is completed under the supervision of an inspector and checked for consistency.
Equipped with a touch interface, temperature sensors, and an automatic glue feeding system, which reduces manual intervention. It also includes a quick stop, alarm function, and feeding error correction
High-Speed Automatic Edge Bander for Precision Panel
Being one of the reputed firms in the woodworking and panel processing industry, we offer a top-quality range of Automatic Edge Banders manufactured to deliver fast, consistent, and durable edge finishing across a wide range of furniture and modular panel applications. These machines are widely used in commercial and industrial applications for woodworking units, modular furniture lines, and plywood-based product assembly.
Hot melt glue tank with precision temperature controlPre-milling system for smooth edge preparationEnd cutting and corner rounding units for premium finishingHigh-speed servo motors and PLC-based digital interfaceAnti-adhesive spray and cleaning station for clean edges
Model Range
| Model Name | Panel Thickness | Banding Speed | Tape Thickness | Supported Material |
|---|---|---|---|---|
| EDB-350 Standard | 10–50 mm | 12–18 m/min | 0.4–3 mm | PVC, ABS, Veneer |
| EDB-450 Heavy Duty | 10–60 mm | 14–22 m/min | 0.4–3 mm | Acrylic, Melamine |
| EDB-600 Pro Series | 12–65 mm | 18–25 m/min | 0.3–3 mm | All Thermoplastics |
Industrial Applications
These products are used in diverse industrial applications such as:
Modular kitchen and wardrobe productionOffice furniture manufacturingPanel-based interior fixturesMDF, particle board, and plywood panel finishingHigh-end retail and display unit production
Top Locations with High Demand
Ahmedabad – Furniture manufacturing zonesBengaluru – Modular office setupsMumbai – Interior and commercial display contractorsPune – Automated carpentry production unitsChennai – Laminate-based furniture assembly linesKolkata – Wood panel processing centers
Bulk Order & Support
MOQ: 1 Unit | Customized tool configurations available
On-site setup and operator training support
Offered Product
Automatic Edge Banding Machine
Automation GradeAutomaticBrandSiddhtech IndustryAir Pressure0.6 MpaVoltage380 VWeight2600 KgFeeding Speed20 M/minTotal Power14.5 KWPhaseThreeFrequency50 HzEdge Band Thickness3mmMin Length Of The WoodMore Than 160 MmPacking Size5800 X 1100 X 1600 MmMin Width Of The WoodMore Than 80 MmThickness Of The Wood60mmCountry Of OriginMade In IndiaSpecifications Following: Glu... Read moreAutomatic Edge Banding Machine Manufacture In Tamil Nadu
The Automatic Edge Banding Machine Is Designed For High-speed Panel Finishing Operations. This Machine Provides Edge Banding, Gluing, Trimming, And Polishing For MDF, HDF, And Particle Boards. Its Robust Construction Ensures Long-term Durability In Mass Production Units. The Machine Is Prepared Using Sectional Assembly, Starting With Frame Alignment, Motor Installation, Glue Pot Adjustment, And Sensor Calibration. Each Process Is Completed Under The Supervision Of An Inspector And Checked For Co Continue
Automatic Edge Banding Machine Manufacturer In Bihar
We Offer High-performance Woodworking Machinery To Ensure Precise Furniture Finishing And Maintain Global Quality Standards. Our Automatic Edge Banding Machine Provides A Superior Finish By Applying PVC Or Wood Strips To The Edges Of Raw Panels, Protecting Them From Moisture. Using This Machine Significantly Increases The Productivity Of Prefabricated Kitchens And Office Furniture, Which Is Crucial In The Patliputra Industrial Estate (Patna).Using Linear Manufacturing Processes, We Offer Produ Continue
Automatic Edge Bander Machine Manufacturers In Jalgaon
We Are Among The Best Automatic Edge Bander Machines Manufacturers And Suppliers In Gujarat, Rajasthan, Maharashtra And Madhya Pradesh. They Are Widely Used In Many Industrial Applications And Installation, And Are Available To Customers In Different Sizes And Thicknesses. The Color, Length And Thickness Of These Automatic Edge Bander Machines Can Be Customized According To Customer's Requirements. We Offer These Automatic Edge Bander Machines To Clients At Affordable Prices. Continue
