CNC Acrylic Router Machine Supplier In Pune, India
Details of CNC Acrylic Router Machine
We pride ourselves on our commitment to excellence and customer satisfaction by providing equipment that ensures precise cutting, engraving, and shaping of acrylic panels. We also maintain our business in the signage and LED display industries.
Machinery Configuration with Operating Features
Our organization manufactures CNC acrylic routers to meet medium- and large-scale processing demands. Controlled tool movement, a stable worktable, and precise speed control enable repetitive work with minimal variability.
Functional Overview
| FEATURES | DETAILS |
|---|---|
| High-speed spindle for smooth edge finish | RPM: Up to 24000 |
| Stable gantry movement | Drive Type: Stepper / Servo Motor |
| Multi-layer sheet processing | Working Table: Vacuum with T-slot support |
| Compatible with acrylic, PVC, and foam | Max Thickness: Up to 30 mm (material-based) |
| PC-based control with offline support | Controller: DSP / Mach3 / NC Studio |
Structured Output for Advertising Panels
We manufacture equipment proper for manufacturing billboards, nameplates, decorative signs, and cutting industrial labels. Material consistency and tool compatibility ensure consistent batch processing across multiple formats.
Application in Multiple Fabrication Units
In this industry, acrylic routers play a key role in branded production units. Consistency, depth control, and surface finish are critical, especially when repeat production is required for custom orders.
Specification
| SPECIFICATION | DETAILS |
|---|---|
| Working Area | 1300 x 2500 mm / Custom |
| Spindle Power | 3.0 kW – 6.0 kW |
| Axis Drive System | XYZ Ball Screw / Linear Guideways |
| Table Type | Vacuum with clamps / T-slot |
| Max Travel Speed | 25–35 m/min |
| Control System | DSP / NC Studio / Optional Touchscreen |
| Power Requirement | AC 220V / 380V, 50Hz |
| Supported File Formats | G-Code / HPGL / DXF |
Offered Product

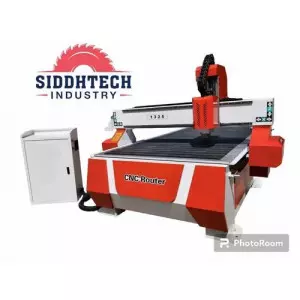

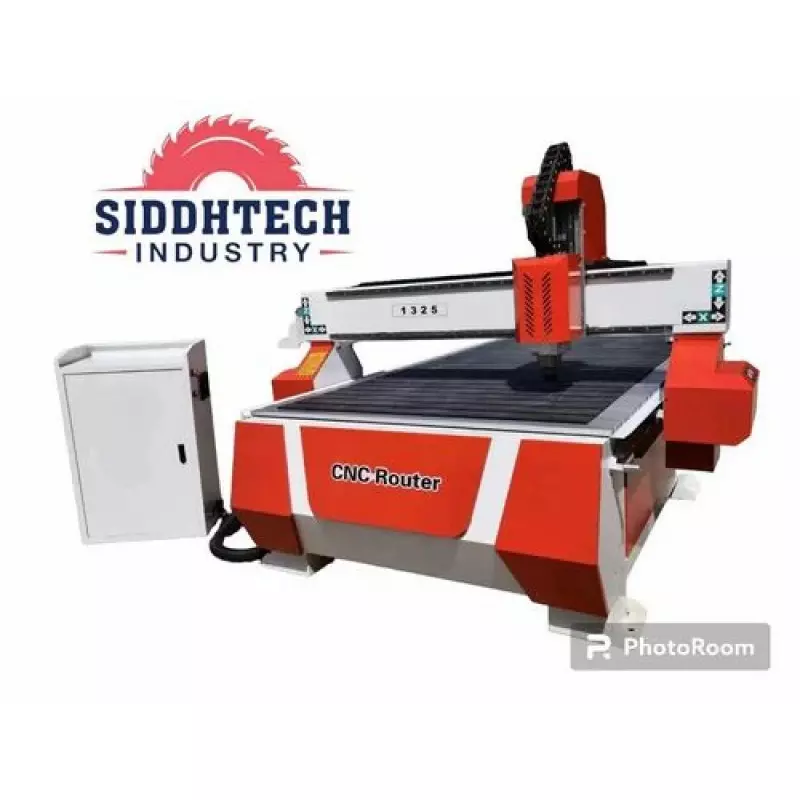

CNC Acrylic Router Machine
X-Y Axis Working Area1300 X 2500 MmMachine Type3 AxisSpindle Power6 KWModel1325 SeriesJob MaterialAcrylicSpindle Speed24000 RPMZ MovementBall ScrewDriven MotorStepper MotorConditionNewX-Y MovementRack & PinionCommand CodeG-CodeCountry Of OriginMade In IndiaCNC Routers Can Cut A Variety Of Materials, Including Wood, Plastic, Aluminium, And High-density Foam. CNC Stands For Computer Numerica... Read moreCNC Acrylic Router Machine Manufacturing Unit In Ahmedabad
Smart Routing For Wood And WPVC BoardsWe Offer CNC Wood Cutting Machines Specifically Designed For Processing Wood, Modular Furniture Units, And Cutting WPVC Sheets. These Systems Feature Motion Stability, High Cutting Speeds, And Exceptional Repeatability Across Production Lines.Craft & Mass JobsUsing Pre-loaded CNC Files, Operators Can Create Patterns, Slots Accuracy.Advanced Drives Manage Multi-axis Movement Precisely.Servo Motors Enhance Motion Responsiveness.Dust Collectors And Va Continue
CNC Acrylic Router Machine For Fabrication Units In Bengaluru
We Offer This Arrangement With Vibration-absorbing Mounts, Multi-speed Compatibility, And Calibrated Mounting Space. Separately, Spindle Adjustment Is Long-lasting, Ensuring Consistent Routing Output In Multi-shift Environments. Tool Movement Follows Computer-aided Design (CAD) Sequences Without Delay, Supporting Small And Large Batches.This Machine Is Used In A Variety Of Industrial Applications And Operates Without Slipping, Stalling, Or Misalignment, Even After Repeated Cutting Cycles. It M Continue
CNC Acrylic Router Machine Manufacturer In Surat
We Manufacture CNC Acrylic Router Machines That Deliver High-speed And Precision Cutting For Acrylic Sheets, Sign Boards, Decorative Panels, And Custom Display Materials. These Machines Operate With Advanced Spindle Control, Producing Smooth Edges Without The Need For Additional Polishing. They Can Handle Both Intricate Designs And Large-scale Production Tasks Efficiently. Our Manufacturing Process Ensures Stability, Low Vibration, And Consistent Performance. The Machines Are Suitable For Advert Continue
