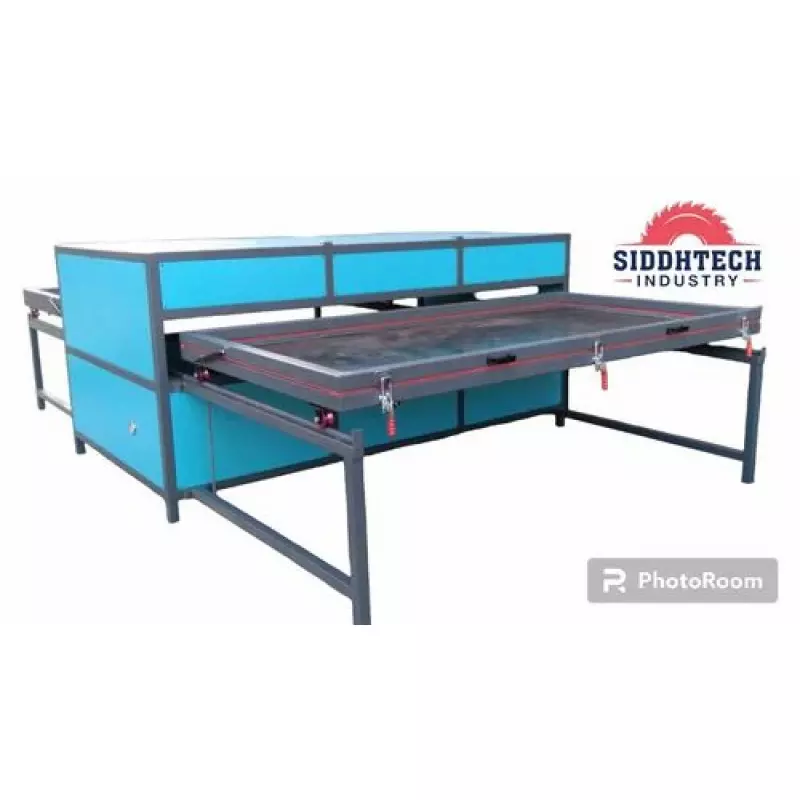

Door Vacuum Press Memran Machine Mumbai

Door Vacuum Press Engineering Overview

What It Is

A door vacuum press membrane machine is an industry system used to apply decorative films, such as PVC, veneer, or acrylic, onto flat or 3D door surfaces. It is commonly used in membrane door production, where surface quality and precision are critical. The machine ensures smooth application of the film without bubbles, wrinkles, or unevenness, even on edges and contours.

How It Works

• Setup The door panel, typically made of MDF, HDF, plywood, or similar materials, is placed on the press bed. The decorative membrane film is positioned on top.
• Vacuum Creation A vacuum pump removes air from the sealed area, creating negative pressure. Atmospheric pressure presses the membrane tightly against the surface, ensuring uniform contact.
• Heat Activation Heating elements warm the film and adhesive. Heat softens the film and activates the adhesive so that it bonds permanently to the panel surface.
• Curing and Cooling The panel is held under vacuum and heat until the adhesive sets. After the cycle finishes, the vacuum is released, and the bonded panel is ready for trimming and finishing.

Key Components

1. Vacuum Pump – generates negative pressure to pull the film tight.
2. Heating Elements – ensure proper curing of adhesive.
3. Membrane/Silicone Sheet – presses the decorative film onto the substrate.
4. Control System (PLC/HMI) – allows adjustment of pressure, temperature
5. Work Table/Bed – platform for the door panel and film.

Typical Applications

• Membrane/PVC Doors – laminating flat and molded door surfaces.
• Furniture & Cabinetry – laminating panels for kitchens, wardrobes, and furniture components.
• Interior Decorative Panels – creating curved or textured surface finishes on walls and cabinets.
• Specialized Laminations – applying veneer or leather films to custom surfaces.

Specifications

• Working Bed Sizes: approximately 2500×1250 mm (customizable).
• Vacuum Pressure: up to -0.95 bar.
• Operating Temperature: typically 120–150 °C.
• Cycle Time: 3–8 minutes per panel.
• Control: PLC with HMI display for precise operation.

Summary

The Door Vacuum Press Membrane Machine is a precision tool in modern door and furniture manufacturing. It combines vacuum pressure and heat to apply decorative films with accuracy and consistency, producing high-quality, flawless finishes efficiently.
