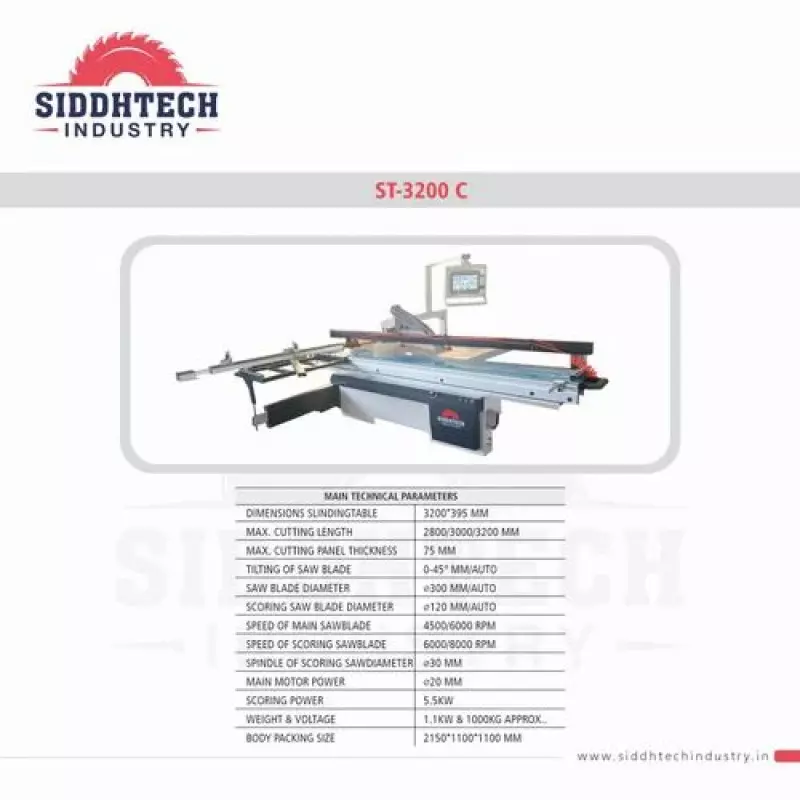

Wood Panel Saw Machine Manufacturers In Baikampady, Mangalore

We supply machinery for wood panel sizing and that covers precision cuts across different factories. It works for clean sheet dimensioning with straight and miter options plus chip free results on veneered boards. Places like modular furniture units and plywood stockists around Baikampady and the Mangalore port corridor use these systems along with packaging and marine timber spots in the broader region.Our sliding table panel saws are the heavy duty kind. They combine high strength aluminum carriages with independent scoring blades and steel base frames that have been treated for stress. This helps keep cuts at ninety degrees square while holding stability under load. It seems the no tearing part on laminated stock stands out but I might be oversimplifying how the whole setup runs continuously.

Benefits :

• Precision multi-chamber aluminum sliding table running on hardened steel guide rails, providing ultra-smooth panel feeding and sustained alignment accuracy under heavy timber loads
• Dual-blade scoring saw system designed to pre-groove the bottom face of laminated plywood, particle board, and marine grade sheets, eliminating edge chipping
• Heavy cast-iron saw arbor unit with smooth manual or motorized tilting up to 45 degrees, accompanied by micro-adjustable rip fences for high-accuracy strip cutting

Technical Specifications

• Sliding Table Stroke Length: 3200 mm standard cutting length capacity for full-size industrial sheets
• Main Saw Blade Capacity: 300 mm to 350 mm blade diameter with adjustable cutting depth and bevel tilt control
• Motor Drive System: Dual motor arrangement featuring a 5.5 HP to 7.5 HP main saw motor paired with a dedicated 1 HP scoring blade motor
