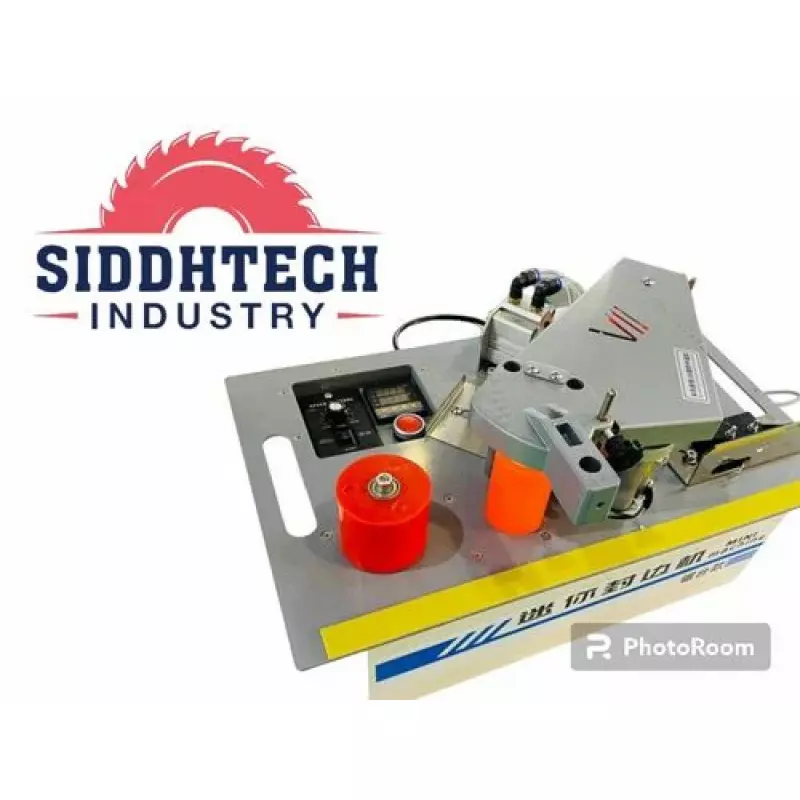

Portable Edge Bander With End Cutting Rajkot
Details of Portable Edge Bander With End Cutting
Bander with End Cutting Technical & Capability Overview
A Portable Edge Bander with End Cutting is a compact, high-precision woodworking machine engineered for applying edge banding tapes to panel edges with integrated automated trimming. It provides industrial-grade finishing while maintaining portability, making it ideal for modular furniture manufacturing, on-site carpentry, and installation operations.
1. Functional Overview
A portable edge bander with end cutting performs three main functions:
1. Edge Tape Application
It applies PVC, ABS, Veneer, Melamine, and Composite edge tapes to straight, curved, or complex panel shapes.
2. Hot Glue System (EVA or PUR compatible, depending on model)
Controlled heating maintains consistent viscosity for strong adhesive bonding.
3. End Cutting Mechanism
Automatically trims banding tape at:
Leading edge (front)
Trailing edge (rear) Ensures seamless joins without manual blade cutting.
2. Detailed Capabilities
2.1 Edge Banding Capabilities
Supports 0.3 mm to 3.0 mm thick edge banding
Works with 15–60 mm tape width (model-dependent)
Suitable for straight edges, rounded profiles, and irregular curves
Applies banding to panels up to 50 mm thickness
Delivers uniform adhesive distribution across irregular surfaces
2.2 Heating & Temperature Control
Digital temperature control system with:
Minimum heating: 120°C
Maximum heating: 220–240°C
PID-based thermal stability to prevent overheating and glue burning
Fast heat-up time (typically 4–6 minutes)
3. Construction & Design Details
3.1 Build Quality
Heavy-duty engineered polymer or aluminum body
Reinforced chassis to reduce vibration
High-torque motor for stable feed pressure
3.2 Hot-Melt Glue System
Stainless-steel glue pot
250–400 ml glue capacity
Anti-stick coating for easy cleaning
Optional PUR glue system in advanced models
Offered Product
Portable Edge Bander With End Cutting
Feeding Speed15 M/minModel Name/NumberEDGE BANDER MACHINEFunctionsEDGE CUTTINGPower4000WAutomation GradeAutomaticEstablished In Year 2020, Siddhtech Industry is A Manufacturer and Trader of High Quality Engraving Machine, Edge Banding Machine, CNC Routers Machine and Much More. These Products Are Manufactured From High Quality Material That Is Procured From Well-known Vendors. The Offered Products Can Be Customized As Per The Specification Provided By... Read morePortable Edge Bander With End Cutting Supplier In Chennai
We Are Leading The Way For Industrial Automation, Real-World Applications In Diverse Industries, Robotics And Automated SystemsWith Decades Of Experience In Industrial Manufacturing, We Have Witnessed The Rapid Transformation Brought By Automation And Robotics. Our Firm Is Actively Integrating Sophisticated Automated Systems To Reshape The Way Production Operates. From High-end Equipment Like Portable Edge Bander With End Cutting To Large-scale Assembly Processes, Automation Has Become The Fou Continue
Portable Edge Bander With End Cutting Manufacturer And Exporter Rajkot
We Are Manufacturing Portable Edge Bander With End Cutting Units For Industrial Applications. These Units Are Compact, Reliable, And Built For Smooth Edge Banding In Furniture And Wood Processing Sectors. Our Products Deliver High Precision And Consistent Performance, Supporting A Wide Range Of Edge Materials Used In Modular Furniture Setups.Advanced Edge Banding FunctionWith Sturdy Construction And Quick Heating Technology, The Unit Enables Seamless Bonding Of PVC, ABS, And Veneer Edges. It Continue
Portable Edge Bander With End Cutting Manufacturers In Ahmedabad
A Smart Solution For Modern Woodworking 2026In Today’s Fast-moving Woodworking And Furniture Manufacturing Industry, Efficiency, Precision, And Flexibility Are No Longer Optional. One Machine That Perfectly Represents These Needs Is The Portable Edge Bander With End Cutting. Compact In Size But Powerful In Performance, This Tool Has Become An Essential Asset For Workshops, On-site Installations, And Small To Medium Furniture Manufacturers.What Is A Bander With End Cutting?A Portable Continue
