Small Panel Saw Machine Manufacturers In Gota

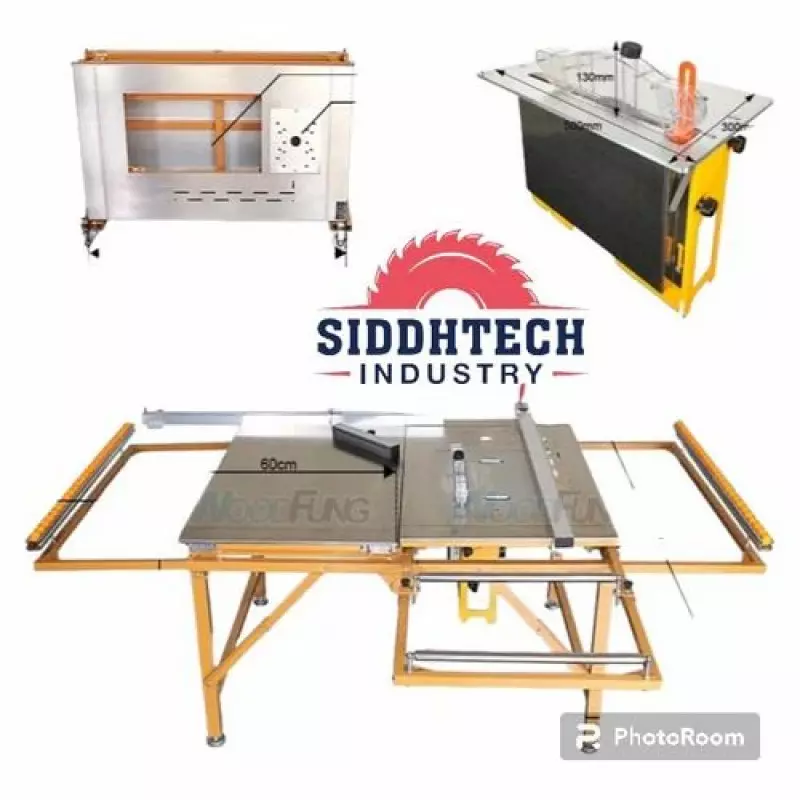

Details of Small Panel Saw Machine
Small Panel Saw Power and Performance Cutting for Professional Woodworking
We provide the Miduiam Small Panel Saw Machine, designed to deliver accurate, smooth, and chip-free cuts for MDF, plywood, particle boards, and laminated panels. Our sliding table system ensures every panel moves smoothly, minimizing vibration and maintaining straight, clean edges.
Chip-Free Edges with Advanced Scoring Technology
Our machines come with an optional scoring blade system, which prevents chipping on pre-laminated or veneered boards. This ensures flawless edges, reducing the need for additional finishing, and saving time in every project.
Smooth and Reliable Sliding Table Operation
Our sliding table ensures effortless panel movement, reducing operator fatigue while maintaining high accuracy. Adjustable rip fences allow precise measurements for every cut, minimizing waste and improving productivity.
Durable Motors for Continuous Performance
We equip our panel saws with high-speed, industrial-grade motors that maintain performance under heavy workloads.
Technical Specifications
| Parameter | Specification Range |
|---|---|
| Sliding Table Length | 1200–3000 mm |
| Max Cutting Thickness (90°) | 55–80 mm |
| Max Cutting Thickness (45°) | 40–55 mm |
| Main Blade Diameter | Ø 250–315 mm |
| Scoring Blade Diameter | Ø 80–120 mm |
| Main Motor Power | 2.2–4 kW |
| Scoring Motor Power | 0.75–1.1 kW |
| Main Blade Speed | 4500–5500 rpm |
| Scoring Blade Speed | 7000–8000 rpm |
| Table Dimensions | 800 × 600 mm (expandable) |
| Tilt Range | 0–45° |
| Materials Supported | MDF, plywood, particle board, laminated panels, acrylic |
Why Choose the Miduiam Small Panel Saw Machine
Our machines are ideal for small workshops, modular furniture production, and on-site installations. With reliable motors, chip-free cutting, and ergonomic operation, the Small Panel Saw is the perfect addition to any professional woodworking area.
Offered Product
Small Panel Saw Machine
Size/Dimension3200*405 MmJob MaterialWoodAutomation GradeYESCutting Width3200 MmNo Load Speed6000 RPMWe Are Providing Panel Saw Machine.Working Table Length : 160-230cmWorking Table Width : 90mmFrame Tube : 40*40*1.0mmDust Collector Motor : 1200WBig Saw Motor : 2600WScoring Saw Motor : 1600WSaw Speed : 4500rpm/13000rpmPacking Size : (550*360*400mm+980*770*520mm+2100*230*200mm) Three PackingVoltage : 220V/1phaseWeight : 101kgs... Read moreSmall Panel Saw Machine SPS-02 Machine Work In Surat
We Are Manufacturing And Supply Wood Working Machine And Tools.We Are Manufacturing Small Panel Saw Machine.The Mini Panel Saw Is A Highly Practical Tool, Designed To Simplify Your Woodworking Tasks. Its Compact Size Allows For Easy Transportation And Storage.Sliding Saw Machine Is Mainly Used For Cutting Sheets Into Sized Parts.It Is Easy To Cut Plywood And Melamine Sheets Into Cabinet Components.Our Sliding Table Saw Is Applied To Processing All Kinds Of Density Boards, Shaving Boards, Wood-ba Continue
Side Use Mini Panel Saw Machine In Udaipur
We Are Manufacturing And Supply Wood Working Machine And Tools.We Are Manufacturing Small Panel Saw Machine.The Mini Panel Saw Is A Highly Practical Tool, Designed To Simplify Your Woodworking Tasks. Its Compact Size Allows For Easy Transportation And Storage.Sliding Saw Machine Is Mainly Used For Cutting Sheets Into Sized Parts.It Is Easy To Cut Plywood And Melamine Sheets Into Cabinet Components.Our Sliding Table Saw Is Applied To Processing All Kinds Of Density Boards, Shaving Boards, Wood-ba Continue
Wood Working Machine Supplier In Nadiad
We Are Supply Small Panel Saw Machine.The Mini Panel Saw is A Highly Practical Tool, Designed To Simplify Your Woodworking Tasks. Its Compact Size Allows For Easy Transportation And Storage.Sliding Saw Machine is Mainly Used For Cutting Sheets Into Sized Parts.It Is Easy To Cut Plywood And Melamine Sheets Into Cabinet Components.Our sliding Table Saw is Applied To Processing All Kinds Of Density Boards, Shaving Boards, Wood-based Panels, ABS Panels, P Continue
